Introduction

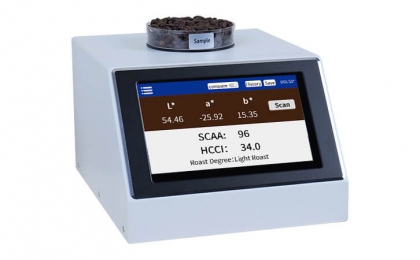

WS177C is a coffee colorimeter. It has a 7-inch touch screen, which is easy to use.

The instrument can quickly match the closest SCAA number and HCCI to the measured coffee beans, and display the relevant coffee roast level.

It also has color difference comparison function and color difference threshold can be set to achieve rapid QC testing.

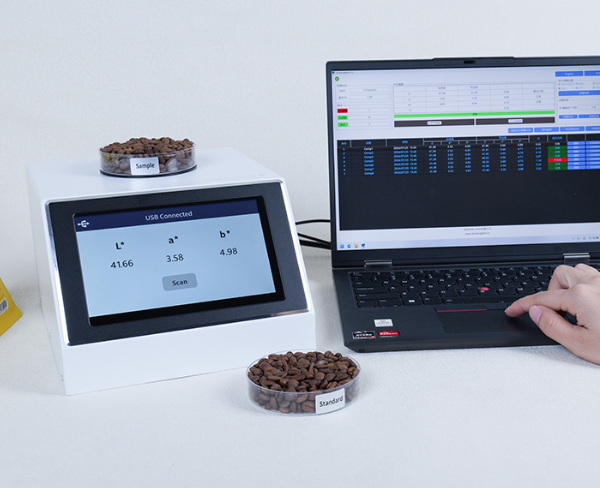

The instrument is equipped with mobile APP and PC software to facilitate color management of coffee beans.

The instrument uses full-spectrum LED light source and advanced spectral sensor.

It can pass the test of authoritative metrology institute.

Features

Measuring SCAA, roast degree, color difference comparison of coffee beans;

Equipped with 7-inch touch screen, easy to use;

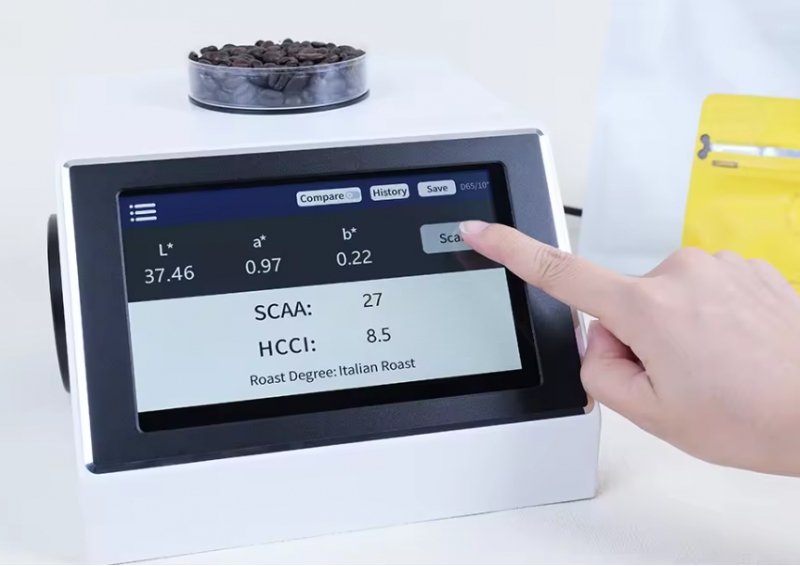

One-touch measurement of SCAA, HCCI and roast degree;

50mm large test aperture;

Lab value and color differrence comparison of coffee beans measurement;

Specification

Illumination geometry    D/8, specular component include (SCI)

Illumination light source    Full spectrum LED light source

Spectral range    400-700nm

Spectral interval    10nm

Measuring aperture    50mm

Measurement conditions    Light source D65, field of view 10°

Measuring time    About 1.5s

Color space    CIE Lab

Color difference formula    ΔE*ab

Repeatability    Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)

Inter-instrument agreement    △E*ab<=0.4, based on avg. of 12 BCRA series II tiles

Dimension     211mm×264mm×360mm(LWH)

Weight    About 3290g

Power supply    100~277V 0.4A 50/60HZ

Display    7-inch 1024*600 dot matrix IPS color screen

Language    Simplified Chinese, English

Data transmission    USB, Bluetooth

Operating temperature range    0~45℃, 0~85%RH (no condensation)

Storage temperature range    -25~55℃, 0~85%RH (no condensation)
